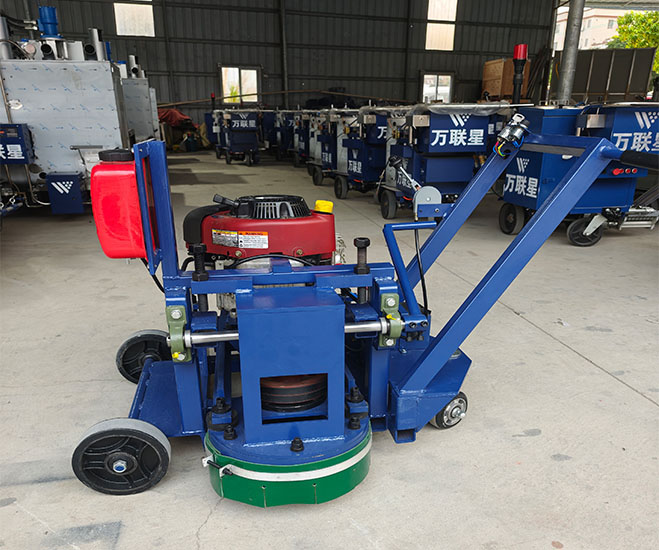

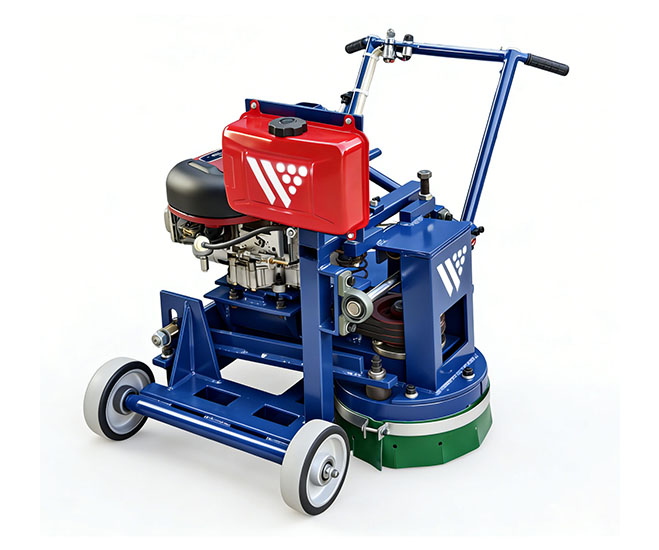

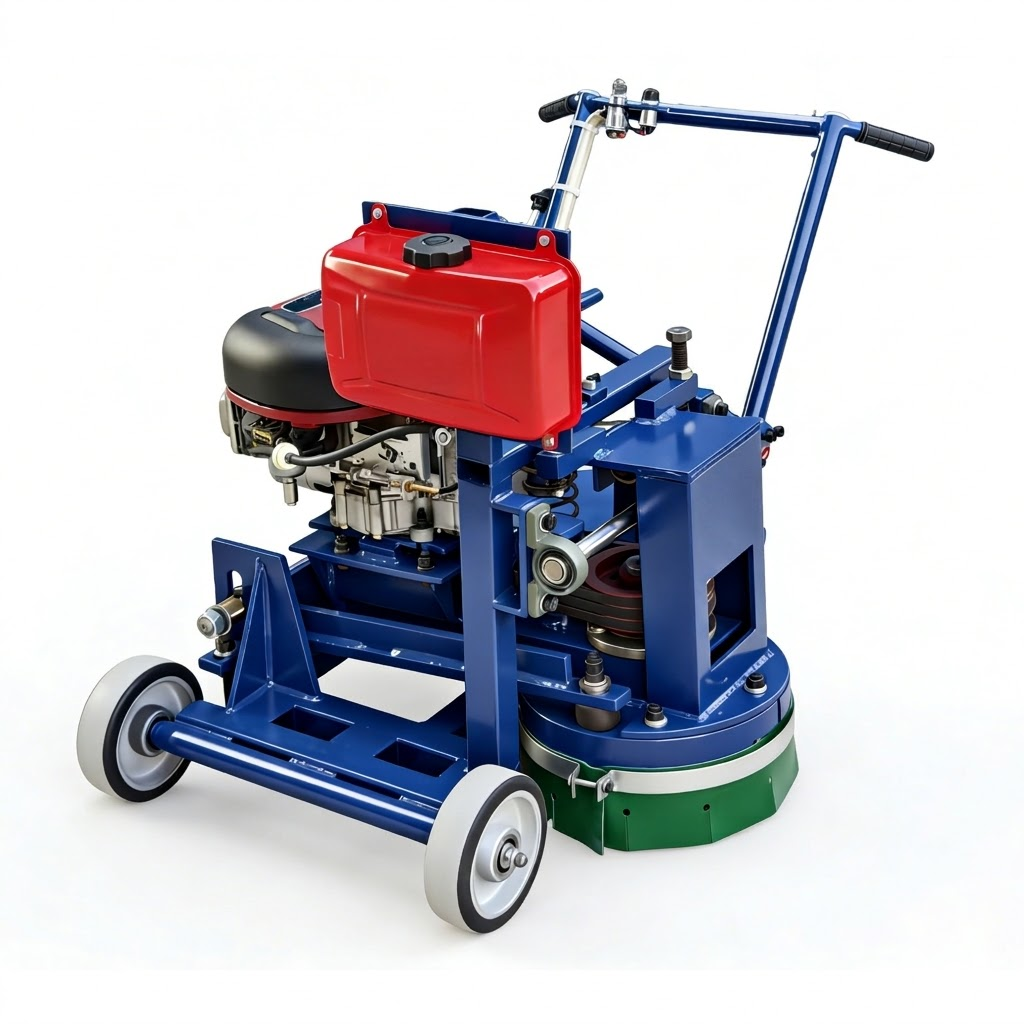

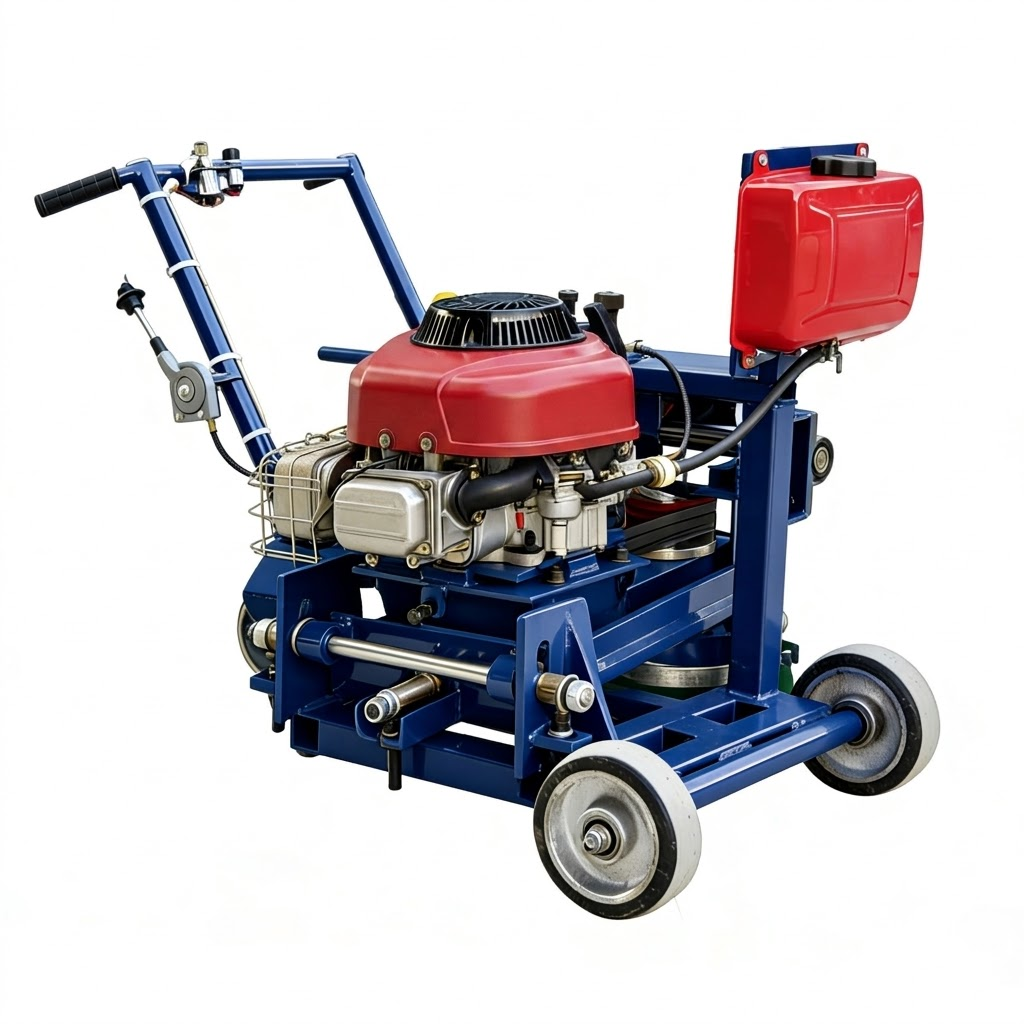

Grinding-type Thermoplastic Old-Line Removal Machine
Product Details
Tired of old lines? Struggling with low efficiency, high costs, and clunky operations? It’s time for a real change! Introducing our new Mini Line Remover! Powered by a robust USA‑imported engine, it blasts through any leftover markings with unstoppable force. Compact body, agile mini‑tires—centerlines, edgelines, gone in no time! Freely adjustable angle fits any road surface perfectly, leaving it clean and smooth. At just 200kg, no extra weights needed—start working instantly and double your efficiency! Ditch the hassle, embrace the power. Let this “Road Refresher” bring new life to every street! The pro’s choice. Click to inquire and step into the era of high‑performance line removal!


Product Feature
✅Compact and Maneuverable:
Featuring mini-type tires and a compact design, it easily navigates narrow spaces and complex road conditions, allowing for efficient clearing of both centerlines and edgelines with seamless maneuverability.
✅Versatile Line Clearing:
Designed to remove various types of road markings, including both center and edge lines. This versatility reduces the need for multiple specialized machines, streamlining operations.
✅Adjustable Operation Angle:
Equipped with an adjustable grinding head that can be tilted to precisely match the angle of different road markings. This ensures thorough and uniform line removal, minimizing rework.

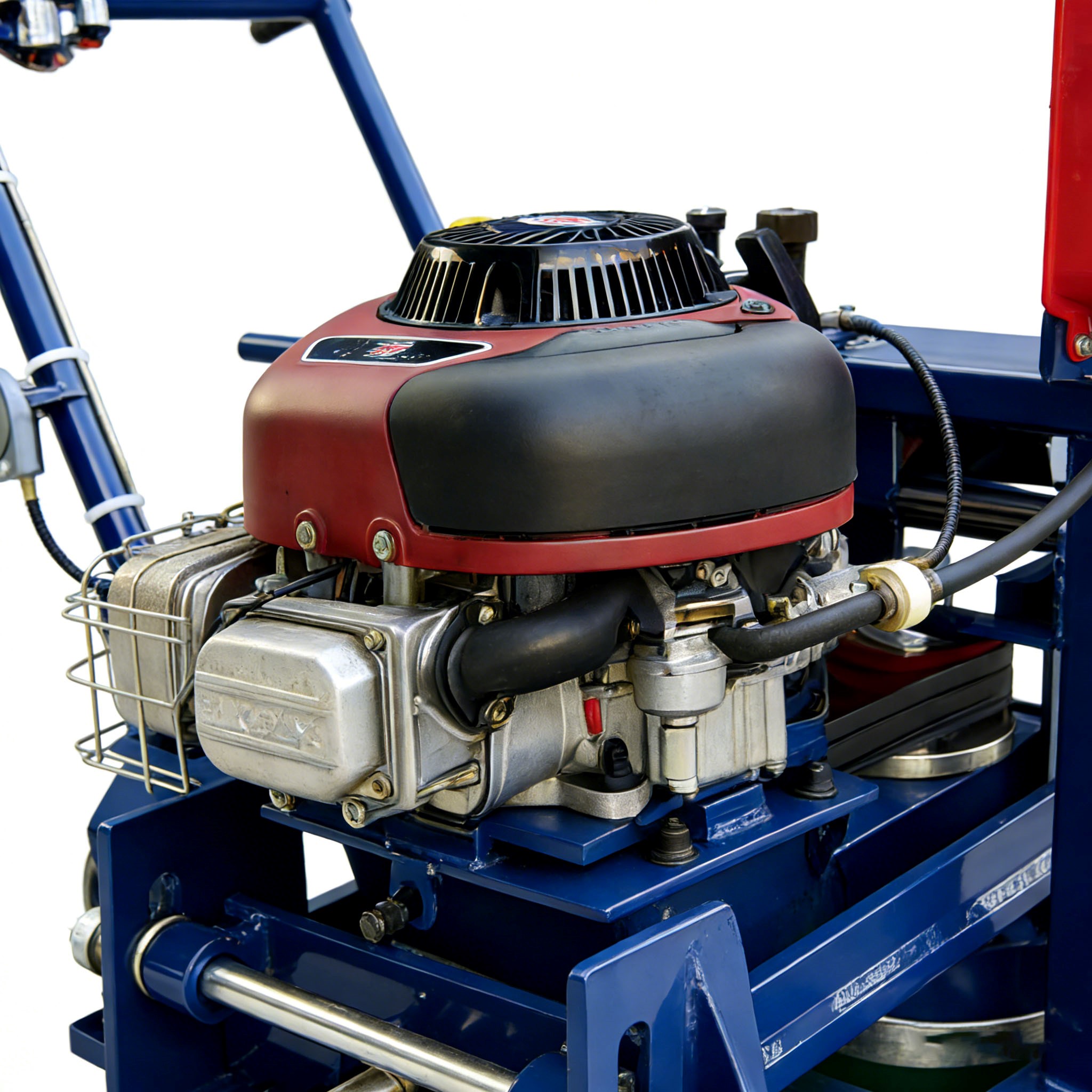

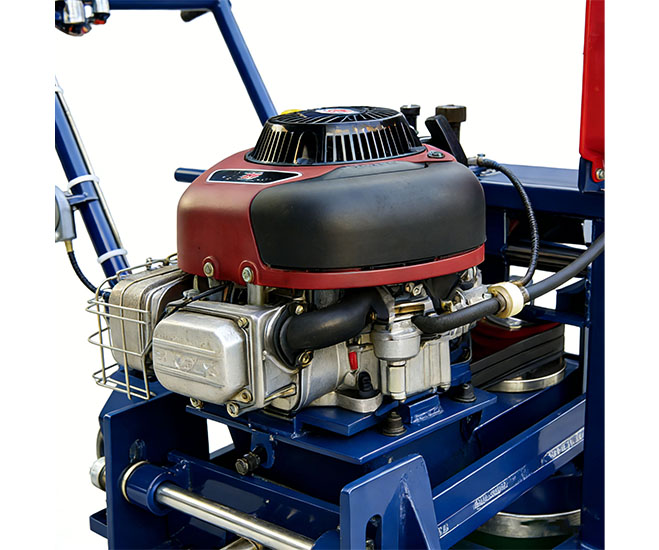

✅Reliable High Power:
Powered by a dependable Briggs & Stratton engine imported from the USA. It delivers stable, robust performance, enhances durability, and reduces long-term maintenance costs.
✅Lightweight and Efficient:
Weighing only 200kg, it operates stably without requiring additional counterweights. This design enables quick setup and high-efficiency work, significantly reducing project downtime for line renewal.

Product Specifications
| Model | HY480 |
| Power | 13.5 HP imported US Briggs & Stratton engine |
| Line Removal Width | 220 mm |
| Line Removal Depth | 1-2.5 mm (adjustable grinding depth based on requirements) |
| Grinding Head | Ultra-wear-resistant carbide sutters |
| Grinding Head Lifespan | 4,500 m² |
| Dimensions | 1150*900*900 mm |
| Weight | 200 kg |
