Pre-marking Machine

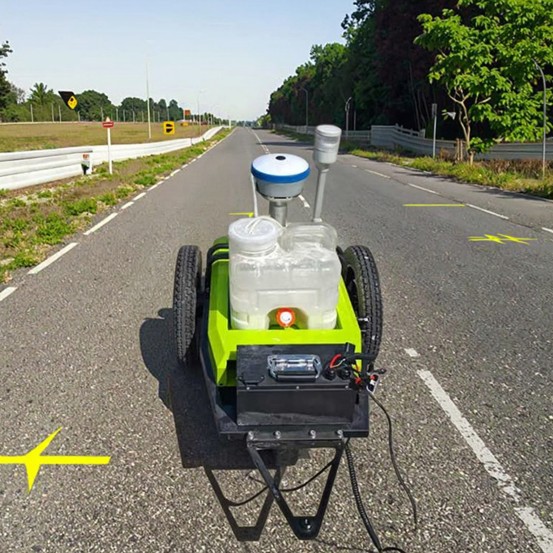

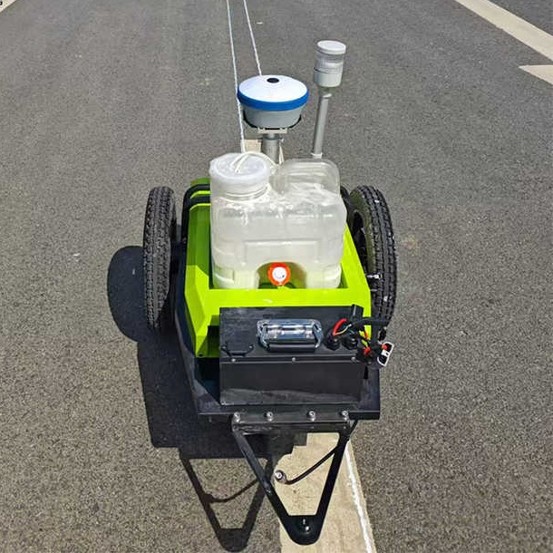

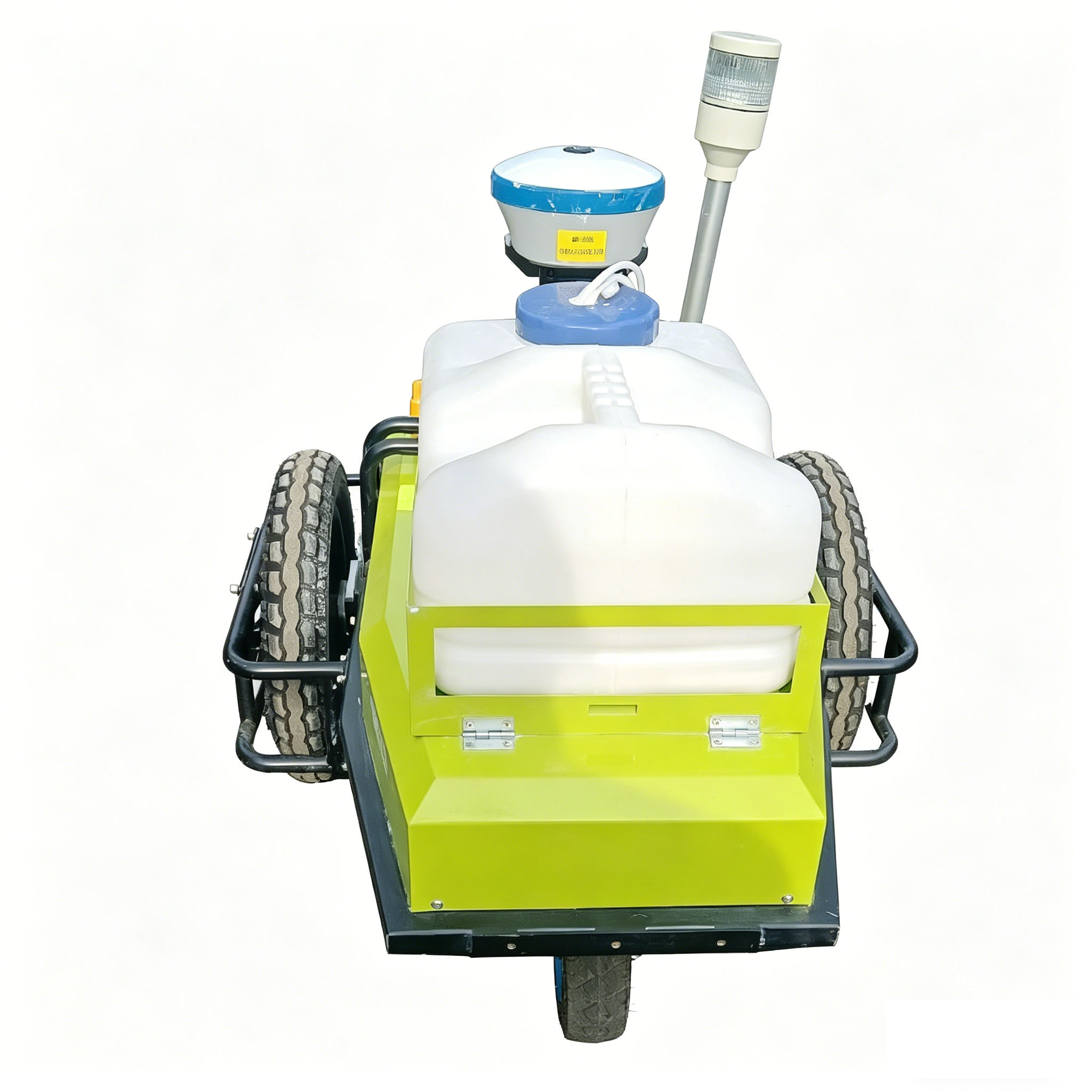

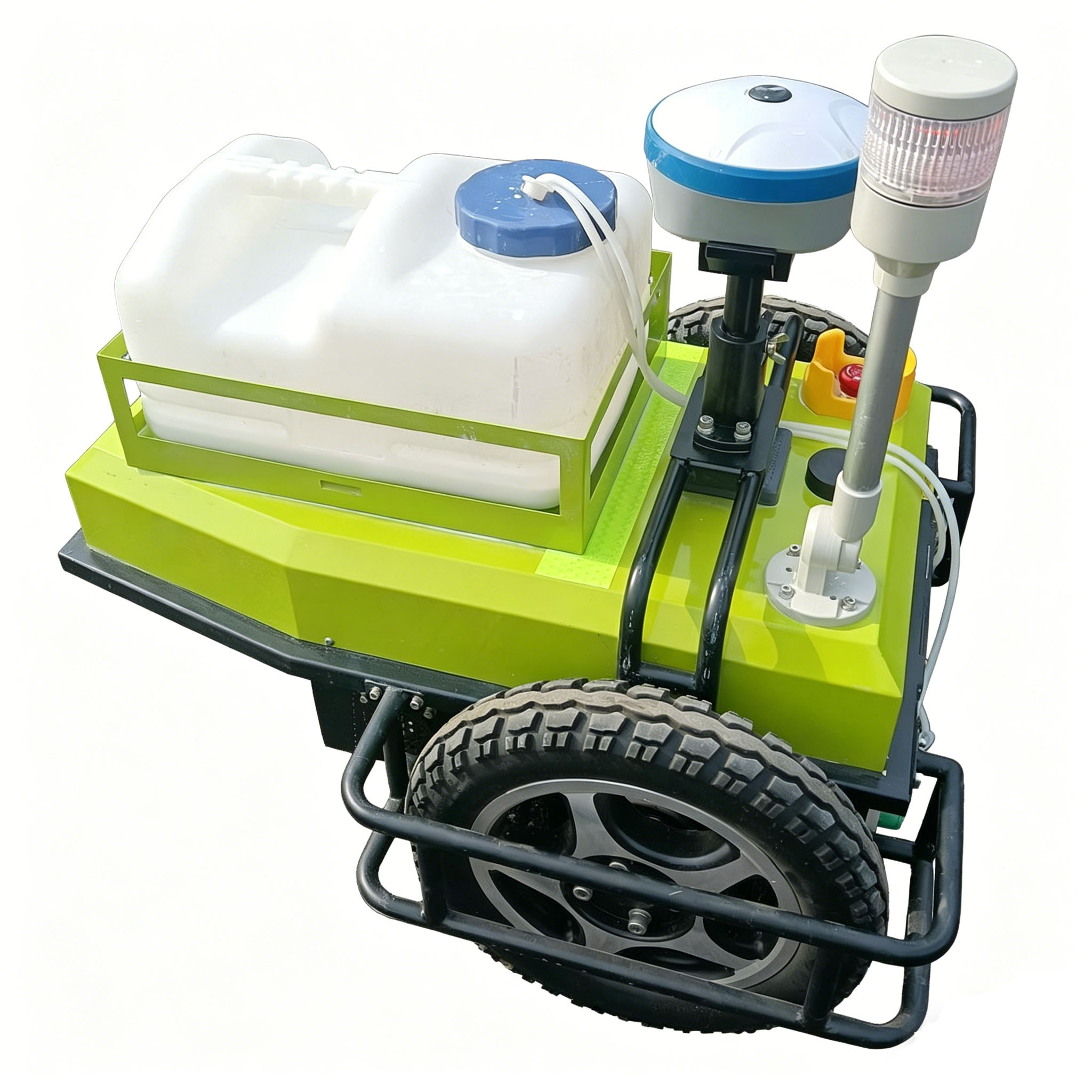

✅Pre-marking Robot

Intelligent Road Pre-marking equipment can increase work efficiency by 8 times, reduce manpower input by 65%, and significantly improve the safety factor of operation.

Applicable Scenarios: Open areas such as highways, urban expressways, main roads, and mountain roads.

Unapplicable Scenarios: Inside tunnels, under bridges, or near tall buildings on both sides.

Pre-marking Line Types: Zebra crossings, lane lines, arrows, lettering, etc.

✅Working Principle：

Before planning the vehicle path, on-site GPS calibration is required. A straight line is defined by two points; an arc is generated by setting key points according to the arc radius, with a typical interval of approximately 30 meters. The length of a straight line can be freely defined between any two points.

To ensure proper operation, prepare a local SIM card and insert it into the device to enable internet connectivity. In addition, a local COSS account is needed to provide reliable satellite positioning and differential correction services for the system.

Product Specifications

📍Core Advantages of Intelligent Pre-marking Robot

✅Ultimate Precision with Flawless Line Quality:

Utilizes high-precision positioning and intelligent tracking algorithms to achieve centimeter-level (±1cm) layout accuracy, while ensuring smooth, standard, and aesthetically perfect lines (like crosswalks, arrows) in a single pass.

✅Dramatic Efficiency Gains & Significant Cost Reduction:

Boosts on-site efficiency by up to 8 times compared to manual work and reduces labor requirements by over 65%. A single operator can manage the primary tasks remotely, drastically cutting labor, time, and project management costs.

✅Enhanced Safety & Reliable All-Weather Performance:

Automates the marking process, removing personnel from dangerous traffic environments for a major improvement in worksite safety. Features a wide operating temperature range (-5°C to 60°C) for reliable performance in harsh conditions, supported by long battery life to keep projects on schedule.

✅Smart, User-Friendly Operation:

Offers simple and intuitive control via remote operation and a dedicated mobile app. Cloud-connected backend enables smart task planning and data management. Compatible with various common marking materials for flexible application.

✅Long-Lasting Battery & High-Capacity Continuous Work:

Delivers up to 10 hours of operation on a single charge for all-day productivity. The 5L high-capacity paint tank allows for continuous marking of 3-5 km per fill, minimizing interruptions and maximizing output.

✅HOW TO USE?

1、Conduct accurate site measurements using RTK.

2、Open the operation APP Huaxian Master (Line Marking Master).

3、Send operation commands via the APP.

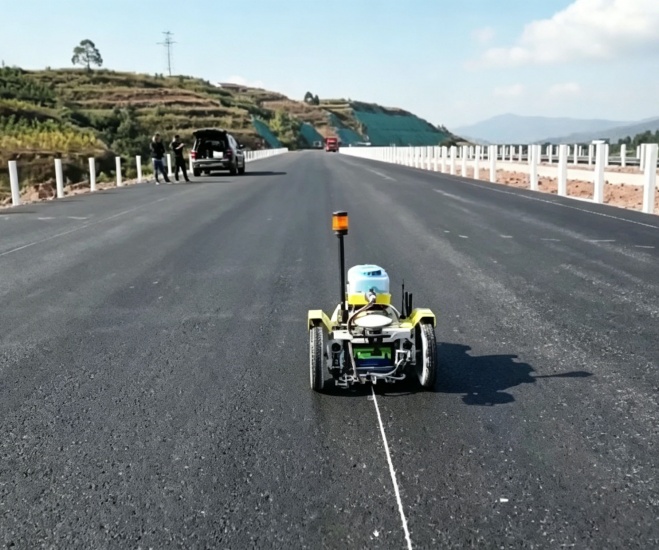

4、Automatically mark lines, arrows and traffic markings.
