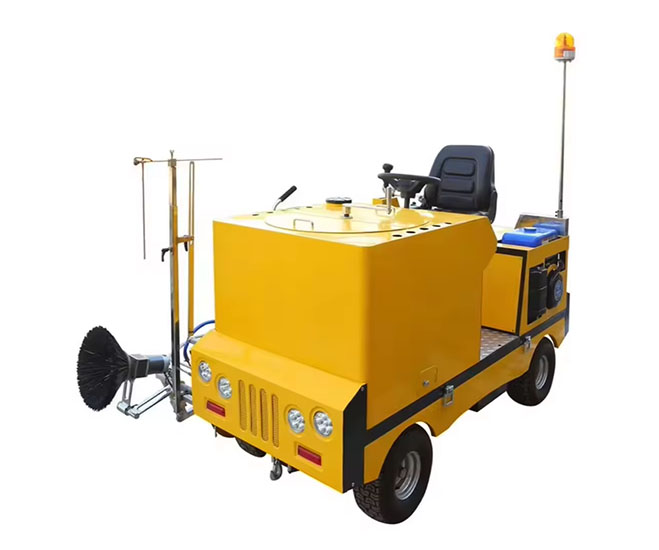

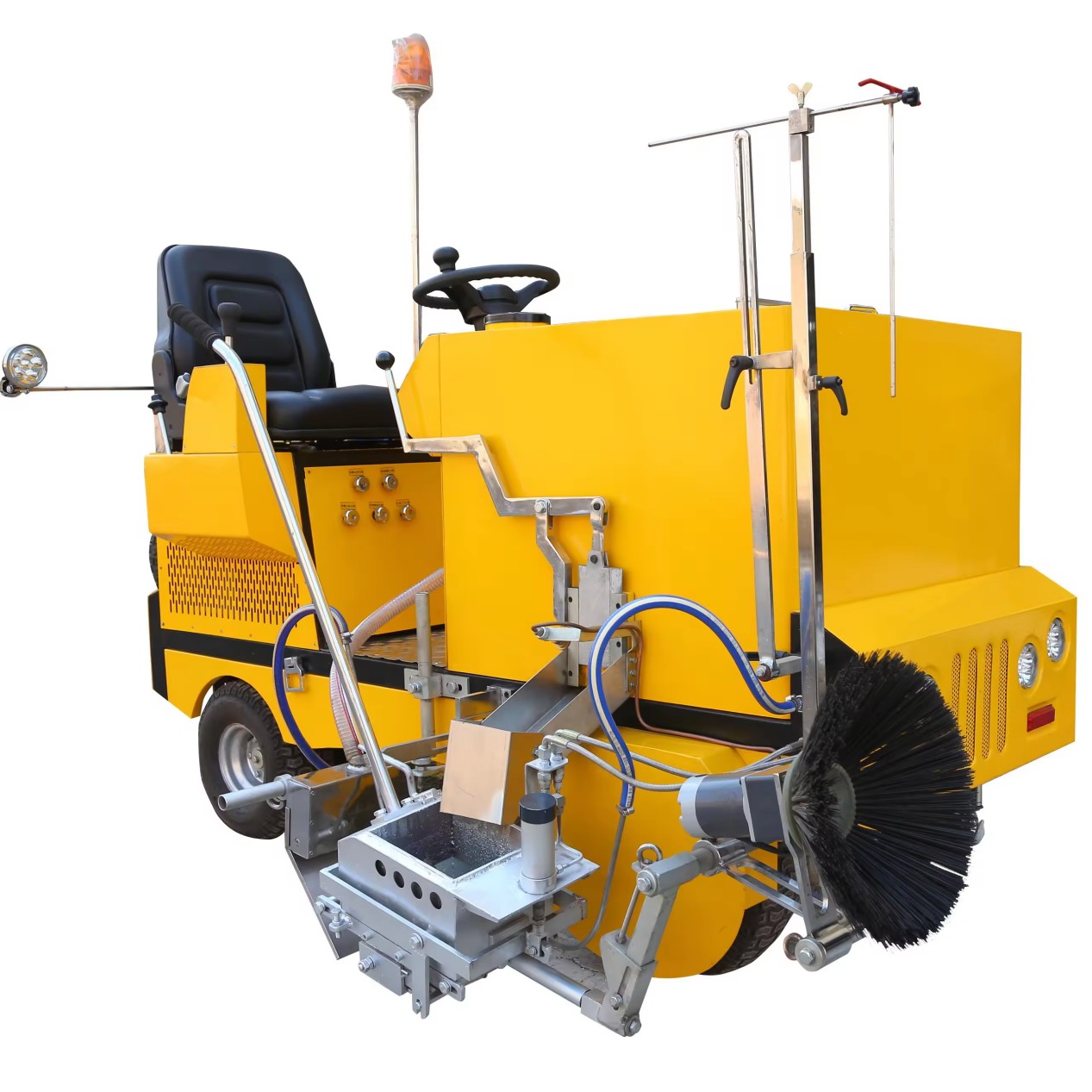

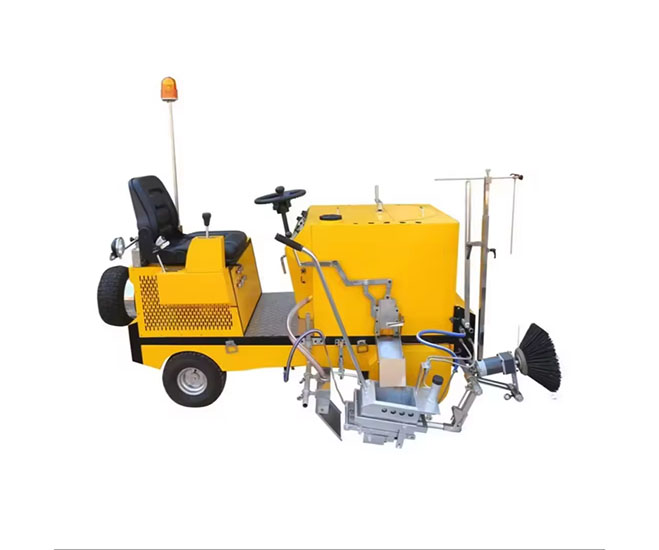

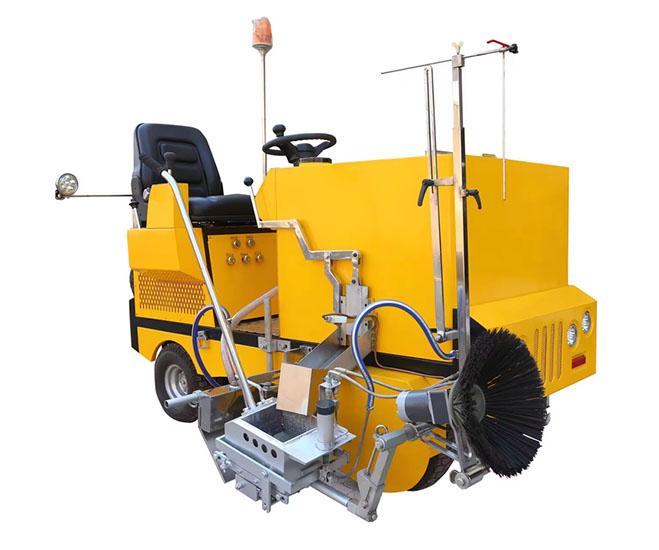

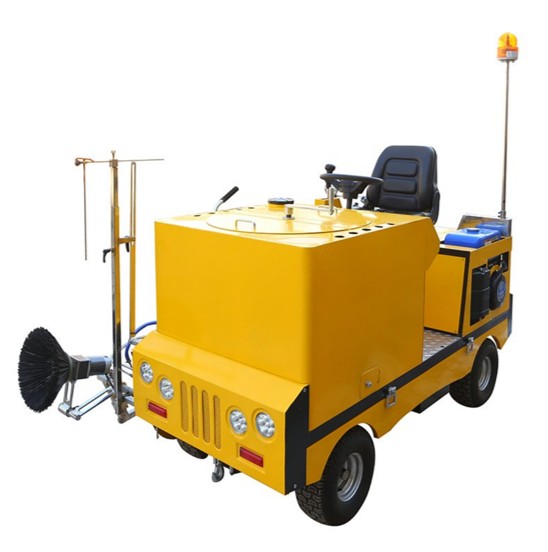

Ride-on Multifunctional Hot Melt Marking Machine
Product Details
Driving Thermoplastic Road Marking Equipment
Driving type thermoplastic road marking equipment adopts an advanced hydraulic drive continuously variable transmission system. This enables the machine drive forward or backward freely, and reduces much manpower. The latest intelligent computer controller and humanized control panel can easily realize manual or automatic skip-lines. When marking a long distance, the accuracy can be controlled within +/- 2cm. Glass beads spreading system is synchronized with pneumatic road marking shoe, to ensure glass beads distribution is more even and more economical.More and more road marking contractors choose driving type thermoplastic road marking equipment to improve their road marking construction efficiency.
Product Specifications
| Marking method | Thermoplastic screed flat and convex lines |
| Engine | example gasoline engine |
| Driving System | imported hydraulic driving system |
| Computer Controller | Automatic PLC, automatic skip line system |
| Paint Tank Capacity | 250kg/125L |
| Glass Beads Tank Capacity | 20L |
| Heating Method | Liquefied petroleum gas heating |
| Marking Equipment | Screed flat or convex marking shoe optional |
| Max Gradeability | 30 degree |
| Walking Speed | 0-20km/h |
| Work Speed | 1000m/h (depending on coat, thickness and worker experience) |
| Machine weight | N.W 600kg, G.W 720kg |
| Dimensions(L*W*H) | 2200*1300*1850 mm |
| Warranty Time | 12 months |
| Delivery Time | 7 days after receipt of payment |
Product features
✅1、Versatile & All-in-One Intelligence
Capable of applying both ordinary hot-melt lines and raised vibration lines, it fulfills diverse marking needs and delivers exceptional value for money.
✅2、Ride-On Operation, Labor-Saving & Efficient
Designed as a passenger-type vehicle, it significantly reduces operator fatigue and boosts productivity, transforming strenuous work into a comfortable "driving" task.
✅3、Microcomputer Automatic Control, Precise & Intelligent
Equipped with the latest intelligent programmable controller and a user-friendly control panel, it enables accurate control over line speed, width, and raised dimensions, ensuring stable, high-quality results.
✅4、Hydraulic Stepless Drive, Powerful & Flexible
Features an advanced hydraulic stepless variable speed system, allowing continuous speed adjustment from 0 to 20 km/h and a climbing ability of up to 30°, adapting to various complex road conditions.
✅5、Double-Layer Insulation Barrel, Energy-Saving & Efficient
The double-layer thermal insulation cylinder extends material heat retention, reduces fuel consumption, and improves melting efficiency, lowering operational costs.
✅6、Synchronous Bead Spreading, Uniform & Economical
The glass bead distributor works in sync with the painting system, ensuring even and economical bead distribution. This enhances line reflectivity and durability, meeting international standards.
